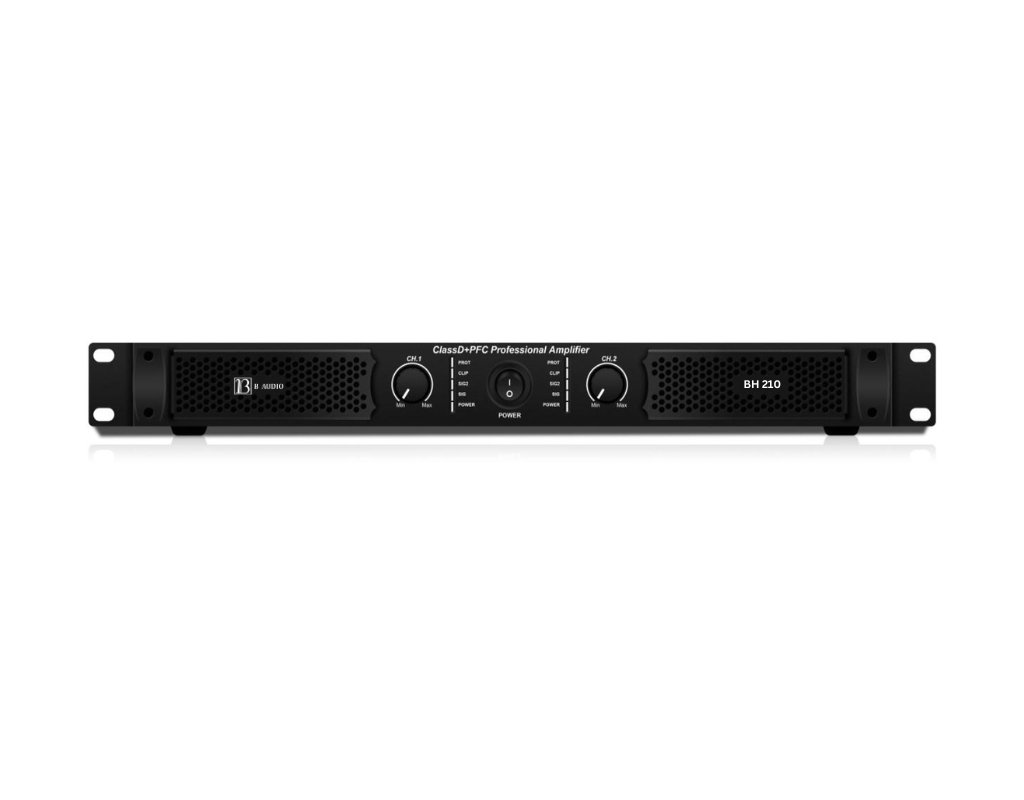

BH-210 Class D Digital Power Amplifier 3000W 4 ohms stable
Technical parameter
| Model Power | BH 210 |
| 8Ω stereo | 2x1000W |
| 4Ω stereo | 2x1500W |
| 8Ω bridge | 3000W |
| Power | AC90V-AC 260V 50/60Hz |
Other specification
| Frequency Response | 5Hz-30KHz,-1dB |
| THD+N | <0.03% (8ohm/1KHz/half power) |
| (A-Weighted) S/N rate | 110dB |
| Damping Factor | 700 |
| Slew Rate | 30V/μs |
| Input Sensitivity | 0.775V/1.0V |
| Input impedance(bal/unbal) | 20kΩ /10kΩ |
| Resolution at rated output power | 80dB |
| Circuit category | Class D |
| Cooling | Airflow from front to rear (5-fan Cooling) |
| Protect function | Soft-start/short circuit/overload/limiter/volume increasing when turned on/DC Fault/AC Line Fuse/Thermal Cut |
Connector
| Input | Balanced input XLR female socket/balanced parallel XLR male socket |
| Output | SPEAKON Nl4 |
Function
| Front panel | Circular power switch/volume control/power/SIG/clip/protect indicator |
| Rear panel | Operation mode/Input sensitivity |
Dimension/Weight
| Product dimension (WxLxH)(mm) | 483x44x350 |
| Packing dimension (WxLxH)(mm) | 565x95x470 |
| G.W. | 8kg |
Remarks:
1. The power is measured according to EIA standards.
2. The power is measured using a 40 ms pulse 1kHz sine wave at THD 1%.
3. The manufacturer reserves the right to interpret the above parameters.
The parameters are subject to change without notice. The final parameters shall be subject to the product manual.
| Brand |
B AUDIO |
|---|---|
| Model |
BH 210 |
The BH series strong power professional digital switching amplifier is designed for large tours and high-end bars. Class-D amplifier module, power factor correction technology (PFC), and reliable and efficient R-SMPS voltage regulator power supply system with the 2024 we have a new technological breakthrough, high power using a dual power supply, even if the input voltage fluctuations can be maintained when the power output is more stable, strong power more power, more energy, low-frequency lower limit of the more powerful, flexible. BH series has 2-channel, suitable for large-scale performances, venues, high-end bars, business senior entertainment clubs, and other places, it is the first choice of audio engineering products.
