BND-13.2 Class D Digital Power Amplifier 14000W 4 Channel Amplifier
| Brand |
B AUDIO |
|---|---|
| Model |
BND 13.2 |
BND Series Performance Introduction
The BND Series is described as a strong power professional digital switching amplifier, tailored for:
-
Large-scale tours
-
High-end bars
-
Business entertainment clubs
-
Audio engineering applications
Key Features
-
Design: International standard 2U/88mm height.
-
Componentry:
-
High-efficiency American IXYS field effect tubes
-
Class D amplifier module with PFC (Power Factor Correction) and R-SMPS (Switched-Mode Power Supply)
-
New for 2024: dual power supply for high power, providing stable output under voltage fluctuations
-
-
Indicators & Controls:
-
Front panel includes:
-
Independent channel power indicator
-
Signal, overload, and fault indicators
-
2/4-way level controller
-
-

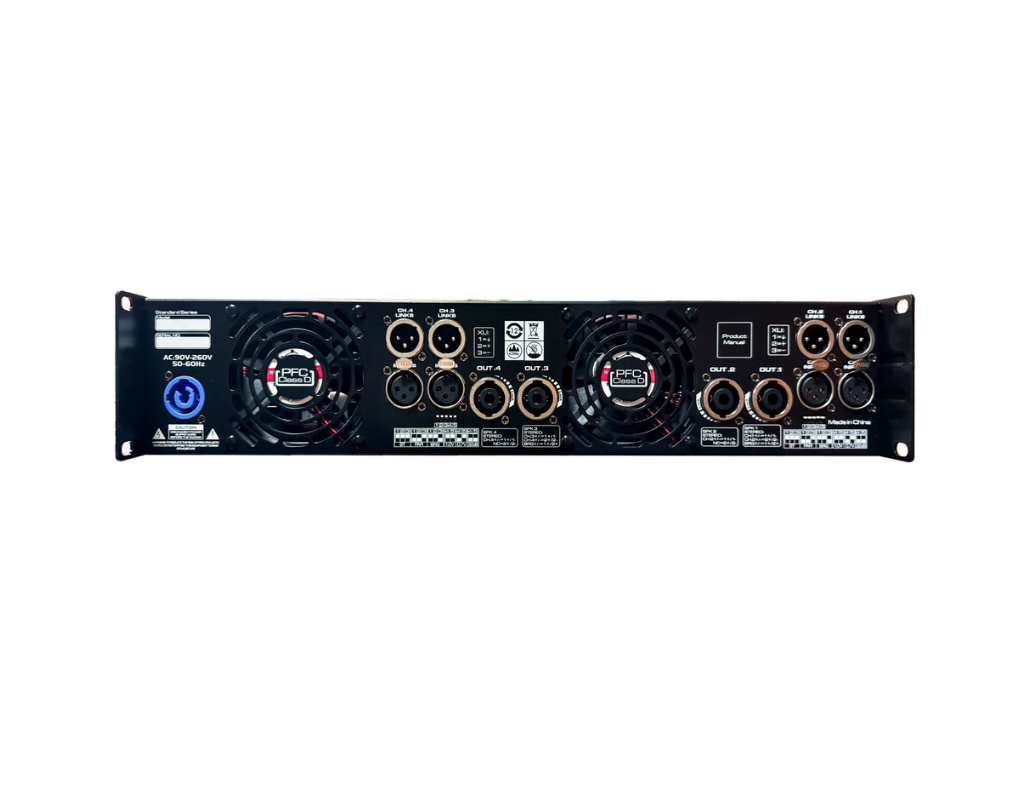

Rear panel:
-
Connection modes: Stereo / Parallel / Bridge
-
XLR (female in, male out) signal connectors
-
Speakon NI4 output sockets
-
-
-
Protection: Full smart protection features embedded
-
Applications: Ideal for
-
Large performance venues
-
Fixed installations with line array speakers
-
Professional rentals
-
Technical parameter
| Model Power | BND – 13.2 |
| 8Ω stereo | 4x2200W |
| 4Ω stereo | 4x3500W |
| 8Ω bridge | 14000W |
| Power | AC90V-AC 260V 50/60Hz |
Other specification
| Frequency Response | 10Hz-20KHz,-1dB |
| THD+N | <0.05% (8ohm/1KHz/half power) |
| (A-Weighted) S/N rate | 100dB |
| Damping coefficient | ≥4000 |
| Slew Rate | 30V/μs |
| Input Sensitivity | 0.775V/1.0V |
| Input impedance(bal/unbal) | 20kΩ /10kΩ |
| Circuit category | Class D |
| Cooling | Airflow from front to rear (3-fan Cooling) |
| Protect function | Soft-start, DC, short circuit, overload, Peak Shaving/ distortion voltage limit and gradually increasing startup volume |
Connector
| Input | Balanced input XLR female socket/balanced parallel XLR male socket |
| Output | SPEAKON Nl4 |
Function
| Front panel | Circular power switch/volume control/power/SIG/clip/protect indicator |
| Rear panel | Operation mode/Input sensitivity |
Dimension/Weight
| Product dimension (WxLxH)(mm) | 483x439x88 |
| Packing dimension (WxLxH)(mm) | 630x575x150 |
| G.W. | 15kg |
Remarks:
1. The power is measured according to EIA standards.
2. The power is measured using a 40 ms pulse, 1kHz sine wave at THD 1%.
3. The manufacturer reserves the right to interpret the above parameters.
The parameters are subject to change without notice. The final parameters shall be subject to the product manual.
