DB-6000 Class D Digital Power Amplifier 5800W 4 ohms stable
Technical parameter
| Model Power | DB 6000 |
| 8Ω stereo | 2x1800W |
| 4Ω stereo | 2x2900W |
| 8Ω bridge | 5800W |
| Power | AC90V-AC220V/50Hz,±10% |
Other specification
| Frequency Response | 20Hz-20KHz,-0.5dB(+/-0.5dB) |
| THD+N | <0.1% |
| (A-Weighted) S/N rate | >85dB |
| Damping Factor | >500 |
| Slew Rate | >20V/μs |
| Input Sensitivity | 0.775V/1.0V/1.4V |
| Input impedance(bal/unbal) | 20kΩ /10kΩ |
| Voltage gain | 39.4dB |
| Circuit category | Class D |
| Cooling | Airflow from front to rear |
| Protect function | Soft-start/direct-current/short circuit/overload/
clip/distortion voltage limit/volume increasing when turned on |
Connector

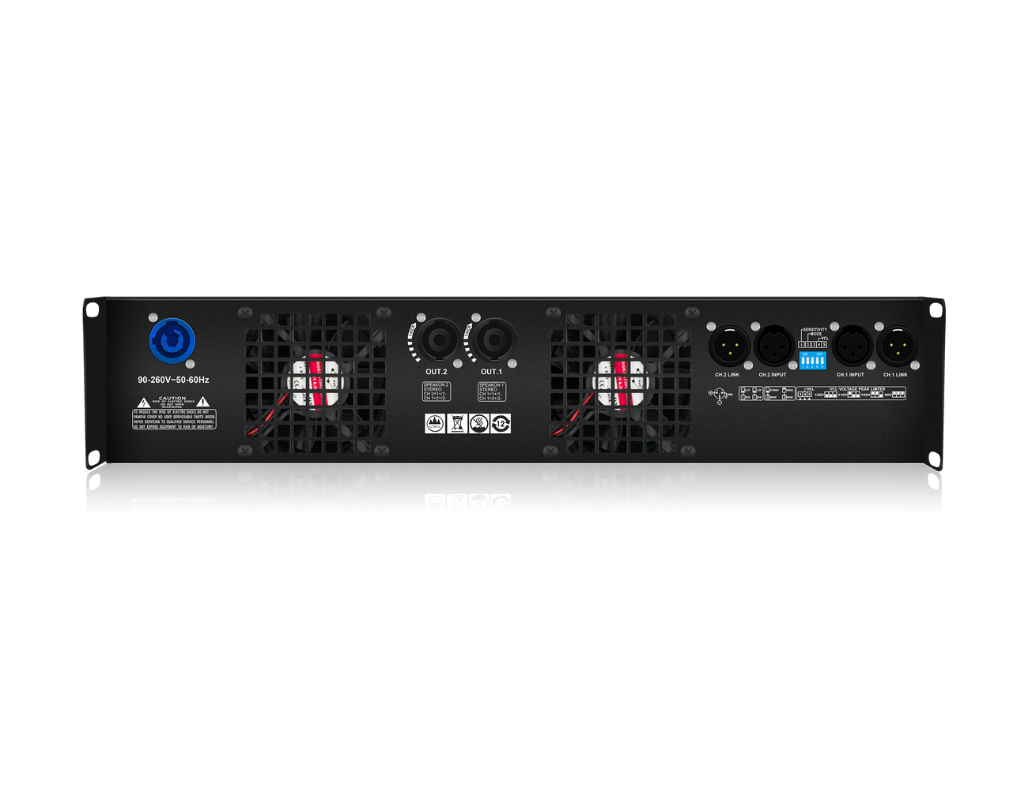

| Input | Balanced input XLR female socket/balanced parallel XLR male socket |
| Output | SPEAKON Nl4 |
Function
| Front panel | Power switch/volume control/power/SIG/clip/protect indicator |
| Rear panel | Operation mode/Input sensitivity |
Dimension/Weight
| Product dimension (WxLxH)(mm) | 483x350x88 |
| Packing dimension (WxLxH)(mm) | 565x550x145 |
| G.W. | 10kg |
Remarks:
1. The power is measured according to EIA standards.
2. The power is measured using a 40 ms pulse 1kHz sine wave at THD 1%.
3. The manufacturer reserves the right to interpret the above parameters.
The parameters are subject to change without notice. The final parameters shall be subject to the product manual.
| Brand |
B AUDIO |
|---|---|
| Model |
DB6000 |
| Power dissipation |
3400W |
DB series is a high-power professional switching power amplifier designed for large-scale tours and high-end bars. The power supply of the power amplifier is powered by a PFC+SMPS world universal voltage power supply. The amplifier module adopts the perfect match of Class D technology, each channel has independently adjustable peak output voltage so that the amplifier can easily drive speakers of different power levels. The DB series is the benchmark for sound in large cruising and high-end bar PA system applications. The DB series has 2 channels 4 channels and 12 power levels. It is suitable for large-scale performances, venues, high-end bars, business high-end entertainment clubs, and other places. It is the first choice in audio engineering!
